Micro-segmentation(blocking internal network spread threats) implemented with TiFRONT ZT security switches

Introduction

Today’s enterprise networks are facing an ever-growing number of cyber threats. In particular, the internal spread of malware—such as ransomware—through lateral movement, as well as unauthorized exfiltration of critical data, can cause devastating damage to organizations. Security experts now widely agree that the traditional approach of closing off internal networks and focusing solely on perimeter security is no longer sufficient to effectively counter modern threats.

This white paper introduces PIOLINK’s security switch–based micro segmentation solution, TiFRONT ZT (Zero Trust), and presents how it strengthens security by blocking lateral movement within the network, preventing data leakage, and responding to various internal threats.

The Need for Network Micro-Segmentation

Traditional network security has primarily focused on protecting internal networks from external threats. However, recent cyberattack trends have clearly exposed the limitations of this perimeter-centric defense model. Once an attacker infiltrates the internal network, they can rapidly escalate privileges and access critical assets through lateral movement between systems.

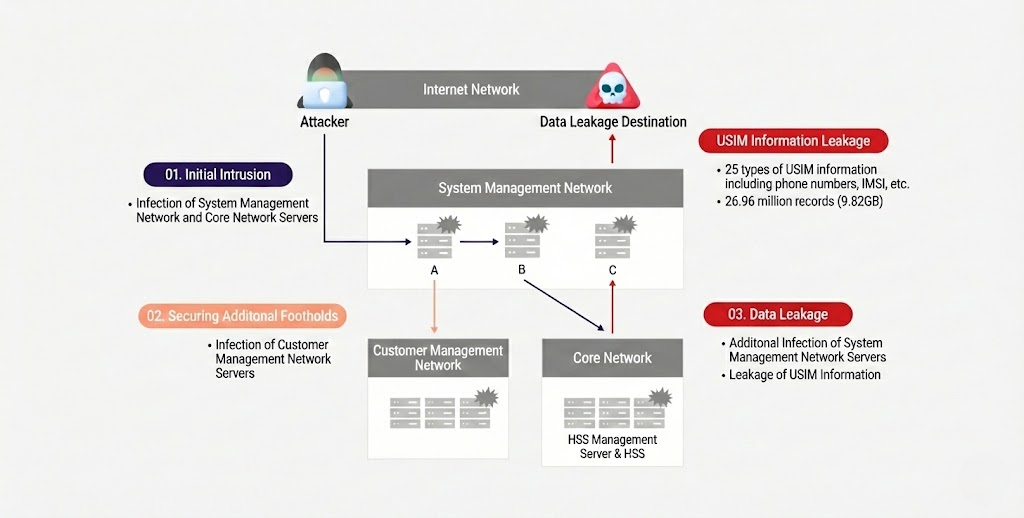

As demonstrated in recent telecom hacking incidents, when user credentials (ID/password) are compromised, attackers can masquerade as legitimate users, gain access to internal networks, and take control of critical systems—resulting in data breaches and service disruptions.

● Root cause of incidents: Unrestricted lateral movement within internal networks

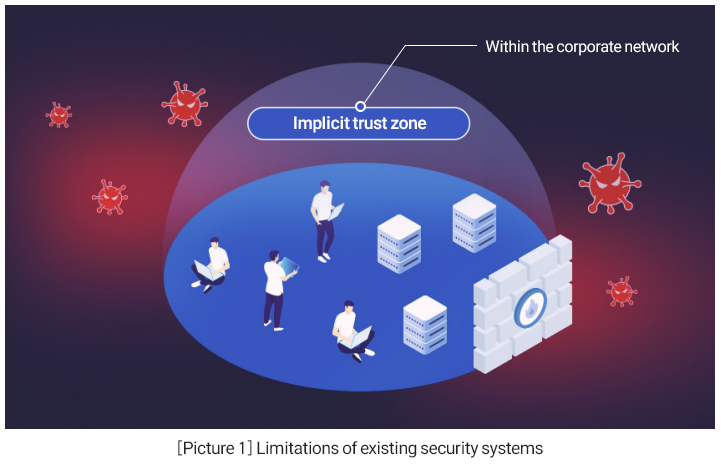

● Limitations of existing defenses: Implicit trust in closed internal networks

Firewalls alone cannot block internal threats such as lateral movement or privilege escalation
For example, In telecom environments, insufficient segmentation between network zones (e.g., management networks, core networks, customer management networks)

To address these challenges, the Zero Trust security model has gained significant attention. Based on the principle of “Never trust, always verify,” Zero Trust assumes that no user or device—inside or outside the network—should be trusted by default. Every access request must be continuously verified and strictly controlled, regardless of network location or resource type.

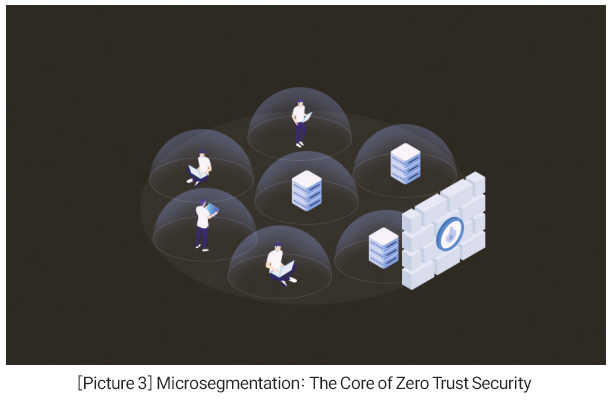

Micro-segmentation is a core security strategy for implementing Zero Trust at the network infrastructure level. By logically segmenting the network and strictly controlling communication between segments, it limits the spread of attacks even if a specific segment is compromised.

This approach is analogous to installing individual access control systems for each office within a building — ensuring that a breach in one area does not propagate to others.

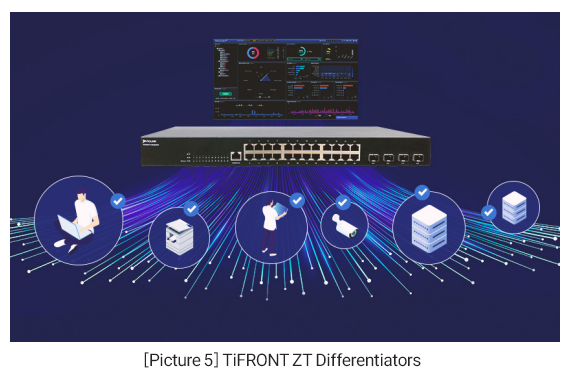

TiFRONT ZT: Zero Trust Infrastructure Powered by Secure Switching

TiFRONT ZT is an innovative solution that implements network micro-segmentation based on PIOLINK's secure switching technology. While conventional Zero Trust implementations typically rely on endpoint agents or gateway-based architectures in front of resources, TiFRONT ZT realizes Zero Trust directly at the network switch level, the foundation of all network communications.

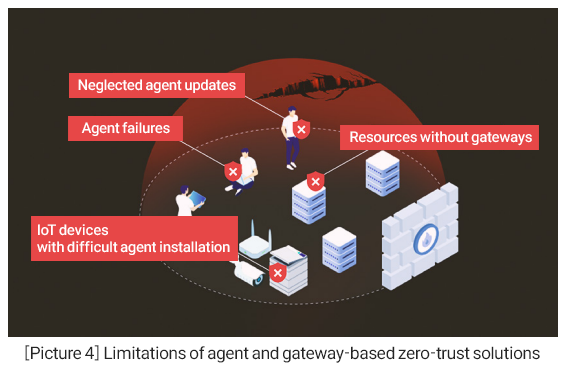

This approach offers significant advantages. Agent-based solutions struggle to enforce security on devices where agents are not installed, not updated, or unsupported, as well as on resources not protected by gateways. This is comparable to systems where antivirus software is missing or outdated—leaving threats undetected or addressed only after infection.

TiFRONT ZT takes a fundamentally different approach. It directly detects and monitors the connection states of all devices and resources on the network, applying real-time security controls regardless of agent installation or device management status. As a result, the network itself becomes the first line of defense, enabling a more fundamental and effective Zero Trust implementation.

Enhanced Network Visibility

The screen below illustrates a topology map visualized through the TiController management system, based on real-time network connection data collected by secure switches. Administrators can instantly see which clients are connected to which resources and what types of communication are occurring.

TiFRONT ZT accurately identifies not only devices attempting to connect to the network but also all devices already connected—such as PCs, servers, and IoT devices. By leveraging physical identity information such as IP and MAC addresses, it provides comprehensive, real-time visibility into all network assets.

Client-Based Communication Path Control (Micro-Segmentation)

A core strength of TiFRONT ZT lies in its ability to precisely control communication paths and destinations on a per-device basis.

Administrators can define and monitor which network devices (switches, routers) and destinations (servers, other endpoints, external networks) each device is allowed to communicate with. This data-driven approach enables robust micro-segmentation with the following benefits:

● No agents or network reconfiguration required : TiFRONT ZT operates at the switch level, enabling user- and device-based micro-segmentation without installing agents or modifying existing network architecture.

● Support for diverse devices : Devices that cannot run agents—such as printers and IoT devices—can still be controlled and monitored. Their connection states and access paths are visualized in topology maps, eliminating security blind spots common in agent-based solutions.

● Topology maps based on actual physical connections : By collecting and controlling traffic directly at secure switches, TiFRONT ZT generates accurate topology maps reflecting real physical network relationships, distinguishing it from solutions focused solely on logical or virtual connections.

● Internal network–optimized visibility : Actual communication paths and access permissions between users, devices, and resources are clearly visualized, enabling effective prevention and control of internal threat propagation.

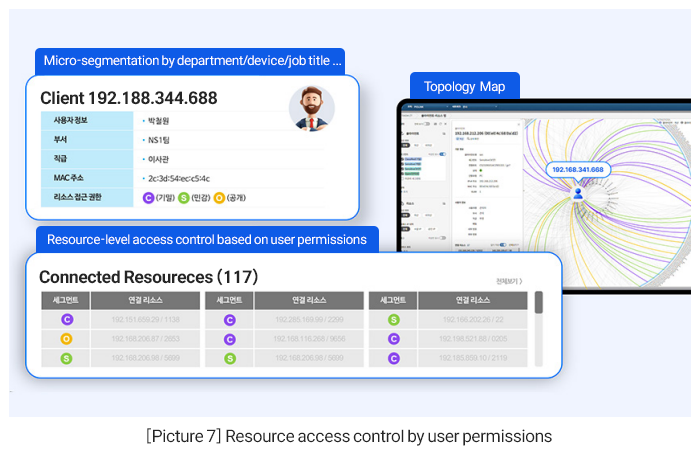

● Policy control based on user role, privilege, and device purpose : Beyond simple IP or MAC-based controls, access policies can be defined based on user roles, job functions, and device usage (business vs. personal), with real-time visualization of policy enforcement.

● Tiered resource access visualization : Access controls can be applied to departmental resources as well as resources in DMZs and server zones, with intuitive visualization of access levels and policies.

● Integration with other security solutions : TiFRONT ZT integrates with additional security solutions to form an expanded security ecosystem, enabling centralized monitoring of overall security posture through TiController.

These capabilities effectively block lateral movement, malware propagation, and unauthorized data exfiltration—key issues identified in telecom breach cases. Even if an attacker compromises a device, any attempt to deviate from predefined communication paths or destinations is immediately blocked, preventing further damage.

Threat Containment Based on Physical Device Identification

Independent of user authentication mechanisms such as ID/passwords, TiFRONT ZT emphasizes physical device verification using IP and MAC addresses. This approach complements traditional authentication systems and provides the following security benefits :

● Mitigation of credential theft risks : Even if user credentials are compromised, network access is restricted from devices that are not registered in TiFRONT ZT, significantly reducing the impact of credential-based attacks.

● Physical identity verification : Physical device verification acts as an additional authentication factor. Even with valid credentials, access attempts from unregistered devices can be blocked or require additional verification—effectively functioning as a form of multi-factor authentication (MFA).

Embedded Security Engines and Threat Intelligence

TiFRONT ZT embeds powerful security engines directly within the switch to detect and block a wide range of internal threats in real time.

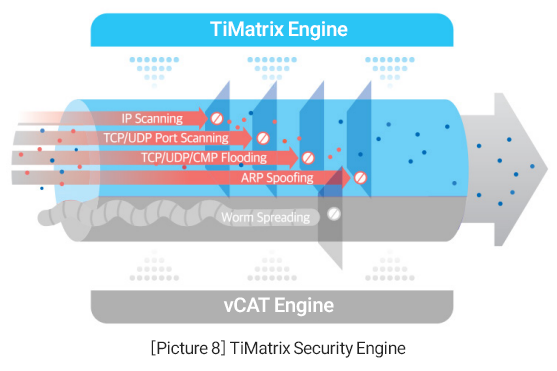

● TiMatrix Security Engine (Behavior-based threat detection and blocking) : TiMatrix is a patented security engine developed by PIOLINK, leveraging high-performance, hardware-based multi-core processing to selectively detect and block malicious traffic.

By analyzing traffic behavior and metadata rather than relying solely on signatures, it effectively responds to zero-day attacks and automatically blocks threats without administrator intervention. This prevents internal malware propagation, mitigates ransomware threats, defends against DoS/DDoS attacks, and ensures business continuity.

● CTI (Cyber Threat Intelligence) – Malicious site access blocking : Using PIOLINK’s Cyber Threat Intelligence service, TiFRONT ZT monitors and blocks access to malicious external sites, including malicious URLs and C2 servers, based on real-time threat intelligence—preventing malware infections and subsequent damage.

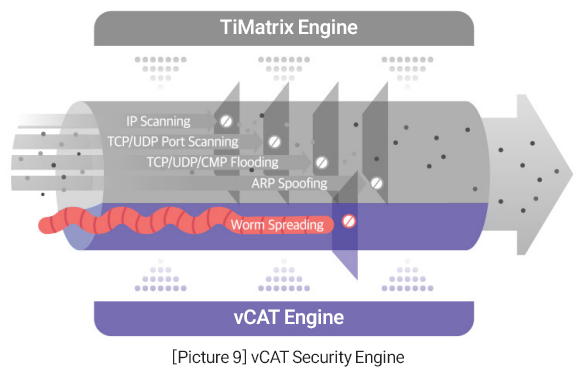

● vCAT (Internal worm propagation prevention) : The vCAT (Virtual Cyber Attack Trap) engine effectively blocks lateral propagation of worms and other malware within internal networks.

By deploying virtual hosts within TiFRONT secure switches, vCAT lures attackers into decoy systems or detects abnormal lateral movement from compromised devices, automatically blocking and reporting threats. This enables rapid isolation and containment of internal attacks.

Expected Benefits of TiFRONT ZT

Organizations deploying TiFRONT ZT can expect the following security enhancements:

● Prevention of internal lateral movement : Effectively controls malware and attacker movement within the network to prevent damage escalation.

● Minimized data leakage risks : Blocks unauthorized data transfers to unapproved destinations or paths.

● Network-level Zero Trust implementation : Enforces the Zero Trust principle of “never trust, always verify” directly at the network infrastructure layer.

● Agentless Zero Trust deployment : Eliminates the need for endpoint agents, enabling protection for IoT devices, printers, and other unmanaged endpoints while reducing operational overhead.

● Enhanced visibility and control : Provides detailed visibility into all devices and traffic flows, enabling precise and effective policy enforcement.

● Improved regulatory compliance : Supports compliance with various security regulations through strict network access controls.

Conclusion

TiFRONT ZT is an innovative, secure switch–based micro-segmentation solution that effectively blocks lateral movement within internal networks, prevents data breaches, and proactively responds to evolving internal threats—safeguarding critical enterprise assets.

By combining device awareness, communication path and destination control, physical device verification, and powerful embedded security engines such as TiMatrix, CTI, and vCAT, TiFRONT ZT overcomes the limitations of traditional security architectures and delivers a proactive, Zero Trust–based defense environment.

As cyber threats continue to grow in sophistication, TiFRONT ZT stands as an essential solution for building a strong, sustainable, and future-ready enterprise network security posture.
