Micro-Segmentation Implemented with TiFRONT ZT : The Evolution of Segmentation and Isolation

As cloud services continue to expand and digital transformation accelerates, traditional network segmentation and isolation alone are no longer sufficient to counter increasingly sophisticated cyber threats.

In particular, lateral movement attacks occurring within internal networks clearly expose the limitations of perimeter-based security models. As a result, micro-segmentation, based on the Zero Trust security model, has emerged as an essential security strategy.

Network Segmentation

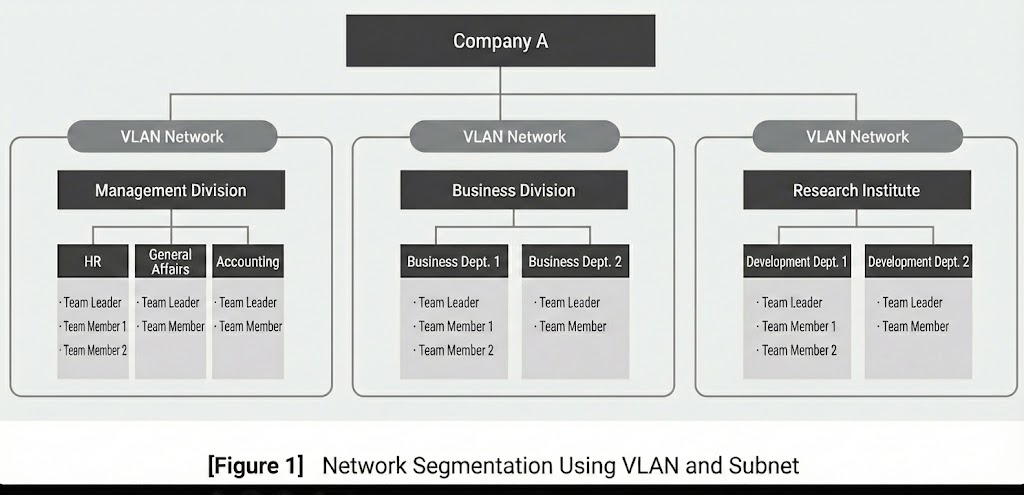

Network segmentation is the process of dividing a large network into smaller subnetworks (segments). Through segmentation, organizations can control access to sensitive information, prevent the spread of malware, and reduce network congestion.

Segmentation contributes to two key objectives simultaneously: enhanced security and improved performance. For example, even if one segment is compromised, the spread of an attack to other segments or the entire network can be effectively blocked. In addition, reducing unnecessary inter-segment traffic improves network performance and optimizes bandwidth utilization.

Benefits and Challenges of Network Segmentation

While network segmentation offers clear advantages in terms of performance and security, it also introduces a certain level of complexity in implementation.

■ Performance: Dividing a network into smaller subnets and VLANs reduces broadcast domains, improving overall network performance.

■ Security: Applying Access Control Lists (ACLs) to VLANs and subnets enables isolation between different network segments. In the event of a security incident, ACLs help prevent threats from spreading to other segments.

■ Challenges: Implementing segmentation for security purposes often requires redesigning existing network architectures or modifying VLAN and subnet configurations, a process that can be complex and time-consuming.

Network Segregation

Network segregation is a technique used to enhance security by isolating specific network components or systems from the overall network. It is primarily used to protect internal assets from external attacks and prevent data leakage. For example, separating an internal corporate network from the internet network can block ransomware or malware from entering internal systems via external connections.

Methods of Network Segregation

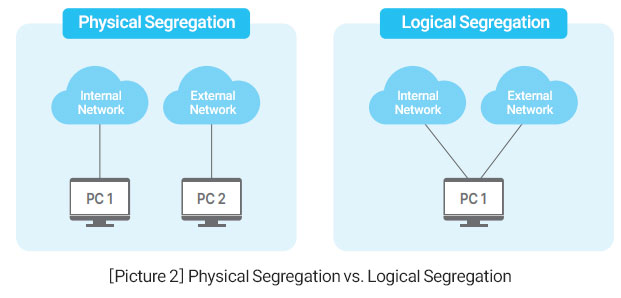

Network segregation can be implemented in two ways : physical segregation and logical segregation.

● Physical segregation : Uses separate hardware devices to completely isolate internal and external networks. This approach offers strong security but comes with higher costs and limited flexibility.

● Logical segregation : Uses virtualization technologies to isolate internal and external networks within a single device. While cost-effective and scalable, misconfigurations can introduce security vulnerabilities.

A New Security Strategy : Micro-Segmentation

With the rise of cloud computing, remote work, and IoT devices, traditional perimeter-based security models are reaching their limits. As a result, micro-segmentation has emerged as a new security strategy. Micro-segmentation divides the network into much smaller units and strictly controls communication between them to prevent lateral movement by attackers. It is typically implemented using Software-Defined Networking (SDN).

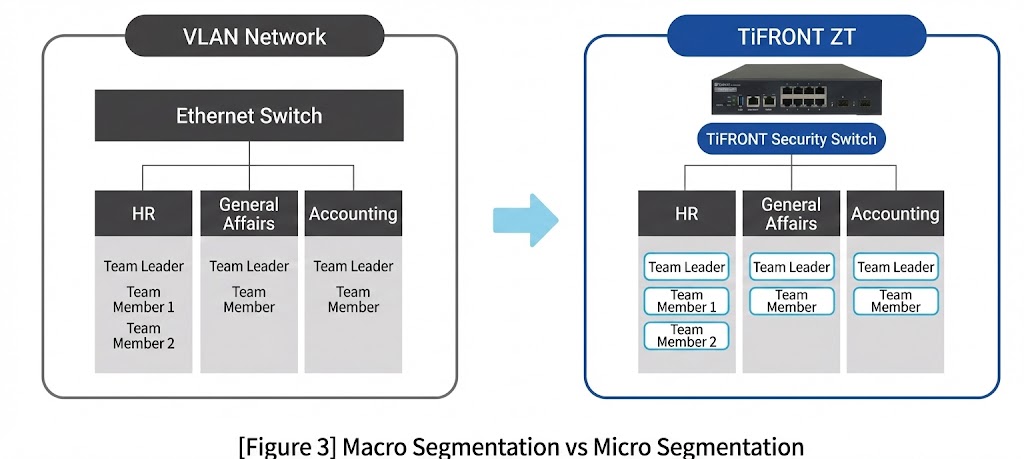

Unlike traditional VLAN-based approaches—where all users within the same VLAN are granted identical access—micro-segmentation enforces the principle of least privilege and the Zero Trust model, assigning tailored access rights to each user and asset for significantly stronger security.

Operational Stages of Micro-Segmentation

Effective micro-segmentation requires identifying users and assets, applying fine-grained access control policies, and responding dynamically to environmental changes.

•  Identity authentication and access control for all users and devices

• Application- and workload-based granular security policies

• Policy-based traffic control (allowing minimal access only to required resources)

• Real-time monitoring and anomaly detection


Micro-Segmentation vs Traditional Segmentation and Isolation

Micro-segmentation differs fundamentally from traditional network segmentation and segregation in terms of security granularity, management efficiency, and adaptability to modern environments.

Benefits of Micro-Segmentation

Through micro-segmentation, administrators can manage access control policies based on the principles of least privilege and Zero Trust. This reduces the attack surface and prevents lateral movement by attackers.

• Enhanced security : Reduces attack surfaces and blocks lateral movement

• Improved visibility : Increased visibility into network traffic

• Flexible deployment : Applicable across on-premises, cloud, and hybrid environments

• Cost reduction : Software-based network isolation without additional physical infrastructure

• Operational efficiency : Automated policy management and immediate isolation during security incidents

• Regulatory compliance : Supports compliance with security and data protection regulations


A Phased Approach to Implementing Zero Trust

Zero Trust is a complex security model that is difficult to implement all at once. A phased approach is therefore recommended.

• Start with the network : Establish a Zero Trust foundation using network-based micro-segmentation with security switches

• Apply least privilege : Limit access to only the minimum resources required by users and devices

• Design for scalability : Begin with network-level controls and gradually expand to applications, data, and identity


TiFRONT ZT Architecture

Many organizations struggle to adopt Zero Trust architectures due to complex configurations and high deployment costs. TiFRONT ZT is designed to overcome these challenges by delivering strong security while minimizing changes to existing environments.

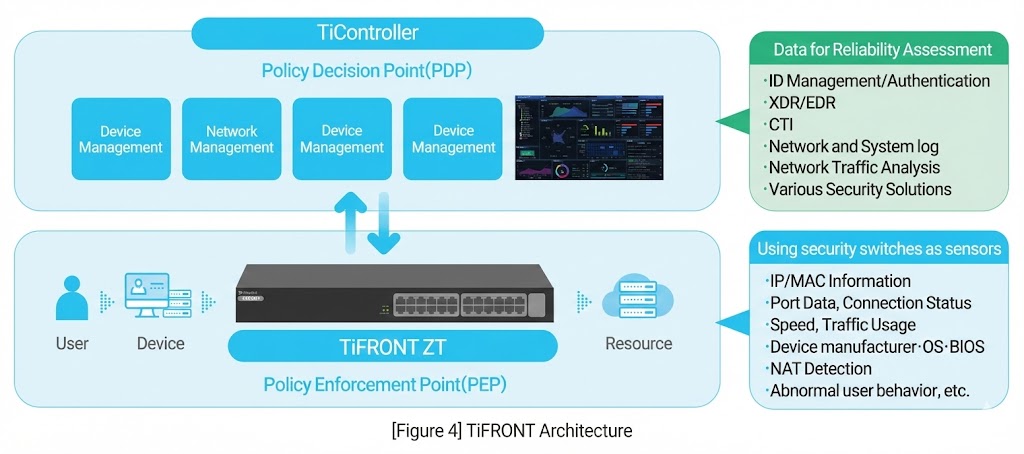

TiFRONT ZT consists of a controller (TiController) acting as the Policy Decision Point (PDP) and security switches (TiFRONT Switch) functioning as Policy Enforcement Points (PEP). This architecture enables user-based micro-segmentation and tiered access control based on resource criticality.

Key Features of TiFRONT ZT

To implement user-centric micro-segmentation, the following core capabilities are required. These provide the foundation for identifying users and assets, applying granular access policies, and responding to dynamic environments.

1) User and Asset Identification

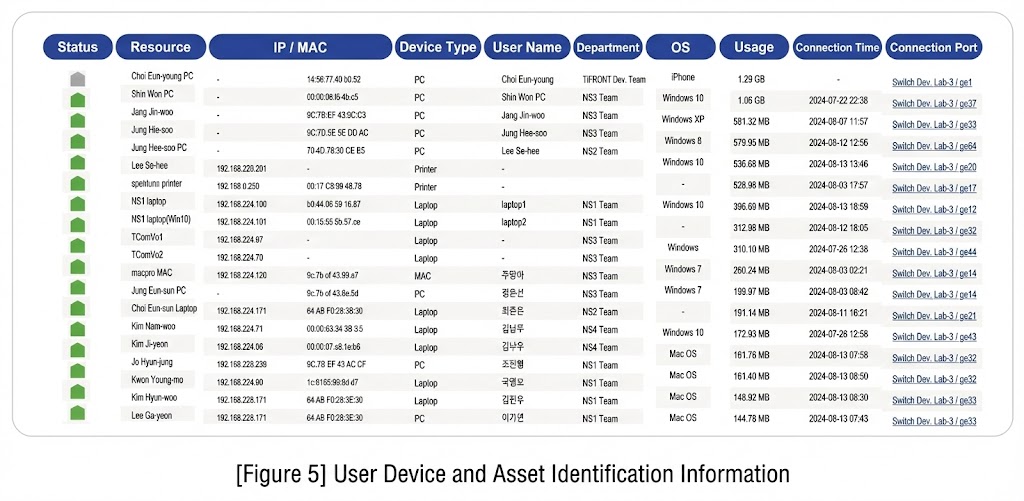

Accurate identification of users and devices connected to the network is essential. Organizations must maintain clear visibility into user identities and effectively manage all owned or utilized devices. Traditionally, agent-based methods are used to collect user and device information. However, agent conflicts, deployment limitations, and compatibility issues with certain devices present challenges. TiFRONT ZT eliminates the need for agents by using security switches as sensors to automatically collect and classify user devices and assets.

• Automatic identification of endpoints, servers, and resources connected to security switches

• Detection of critical assets through traffic analysis

• Asset tagging based on importance (e.g., Tier 0: development servers, Tier 3: test servers)


2) Defining Segmentation Criteria and Asset Classification

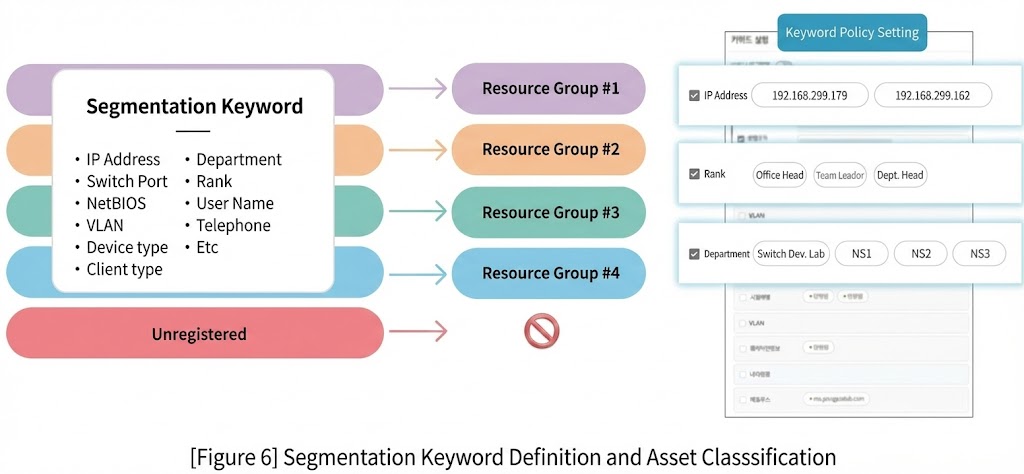

Before segmentation, organizations must determine which assets require protection and assess their importance. TiFRONT ZT defines segmentation criteria based on user roles and device information, classifying assets into Classified, Sensitive, and Open categories according to business criticality.

• Segmentation criteria: IP addresses, IP ranges, device types, users, departments, job roles, and unknown users

• Asset classification: Classified, Sensitive, and Open


3) Dynamic Access Control Policies

At this stage, policies are mapped to actual network enforcement. As modern resources are distributed across internal networks, servers, DMZs, and cloud environments, access control must be based on user attributes to prevent excessive privileges.

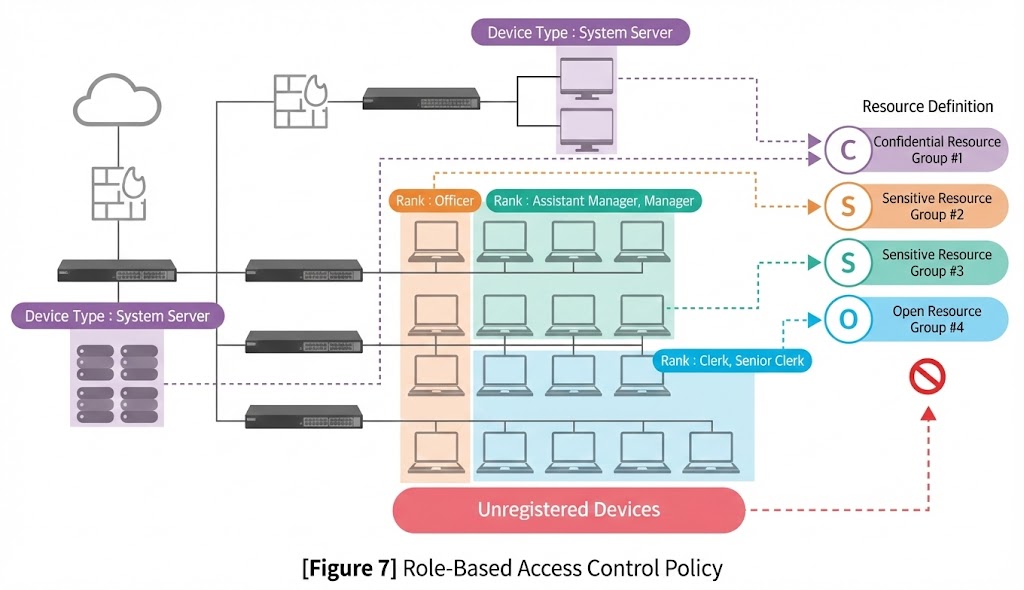

• Role-Based Access Control (RBAC): Differentiated permissions by role (e.g., granting minimum access to critical resources and limiting public resources to internal staff only)

• Location/time-based restrictions: Controls based on IP range, physical location, and access time

• Threat-based policies: Immediate blocking upon detection of abnormal behavior

• Dynamic adjustment: Automatic policy application for new users and devices


TiFRONT ZT enforces least-privilege access without requiring network configuration changes. Segmentation is applied using multiple criteria—including IP addresses, switch ports, NetBIOS, VLANs, usernames, departments, and job titles—granting users access only to necessary resources.

4) Real-Time Visibility, Monitoring, and Optimization

To sustain the effectiveness of micro-segmentation, continuous monitoring and policy optimization are required.

• Traffic analysis : sFlow-based application usage analysis

• Log management : Centralized management of all access attempts and blocked events

• Behavior-based threat detection : Dedicated security engines embedded in switches analyze abnormal behavior and prevent localized incidents from spreading across the network


5) Scalability

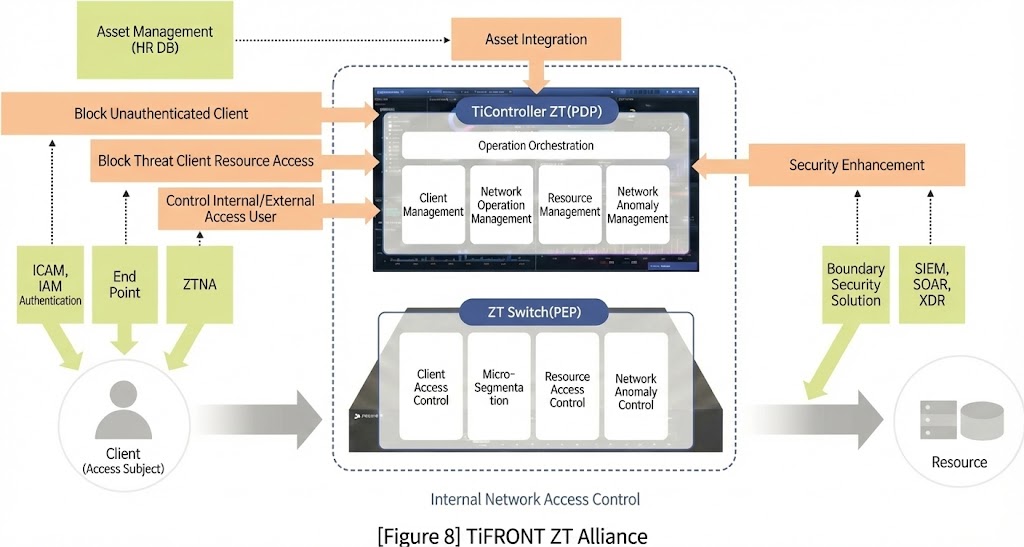

Zero Trust requires control across multiple locations and cannot be achieved with a single security solution. Integration between various security products is essential. TiFRONT ZT supports easy integration with key Zero Trust pillars through standard APIs.

Currently, TiFRONT ZT integrates with IAM authentication solutions, ZTNA, EDR, SIEM, and other security platforms to support all six core Zero Trust components.

Internal Threat Management

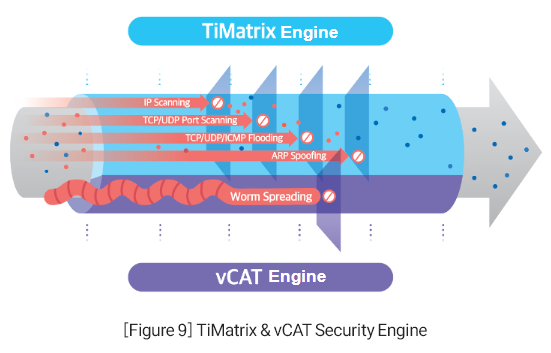

Internal infiltration is a primary objective of modern cyberattacks. Attackers use diverse entry points and advanced techniques to breach internal networks. TiFRONT ZT responds effectively through multiple security engines.

• TiMatrix Security Engine: Selectively blocks malicious traffic in real time without degrading switching performance

• CTI Engine: Identifies and blocks communication with attacker C2 servers

• vCAT Engine: Deploys virtual decoy hosts within security switches to detect and analyze attacker behavior


Key Characteristics of TiFRONT ZT

TiFRONT ZT is an optimal solution for organizations seeking to implement Zero Trust. Through user authentication, micro-segmentation, and multiple security engines, it dramatically strengthens internal network security.

• Ease of Zero Trust adoption : Zero Trust implementation without complex configurations

• Micro-segmentation : Grants access only to required resources per user

• Advanced security engines : Real-time detection and response to APT attacks, ransomware, and other advanced threats

• Operational efficiency : Simplified policy management through centralized control


Conclusion

Modern network environments face increasing security challenges driven by cloud adoption and digital transformation. Traditional segmentation and isolation approaches using VLANs and firewalls are insufficient to prevent lateral movement attacks and struggle to enforce granular security policies in complex environments.

Micro-segmentation has therefore become a core component of the Zero Trust security model. By dividing networks into smaller units and applying independent security policies, micro-segmentation prevents lateral movement and minimizes data breach risks. While typically implemented using SDN, such approaches can be complex and costly.

In contrast, PIOLINK’s TiFRONT ZT enables efficient network-based micro-segmentation using security switches, minimizing infrastructure changes and eliminating the need for SDN-level complexity.

For organizations pursuing Zero Trust, adopting network-based micro-segmentation with TiFRONT ZT is a practical first step—providing immediate security benefits while enabling gradual expansion toward a full Zero Trust architecture.

Zero Trust is no longer optional—it is essential. With TiFRONT ZT, apply micro-segmentation easily to your network infrastructure, enhance security, and expand protection through seamless integration with diverse security solutions.
